| MOQ: | 1 |
| prezzo: | To be quoted |
| Imballaggio standard: | safety carton pack or plywood box |
| Metodo di pagamento: | T/T |

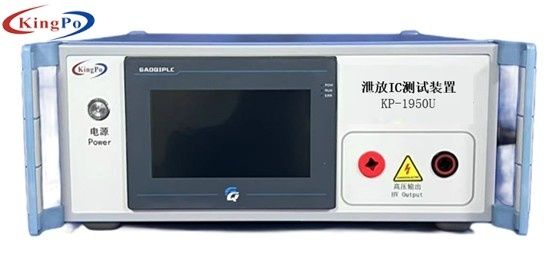

The KP-1950U Discharge IC Tester is a specialized test instrument for electrical safety testing, accurately generating pulse signals and high-voltage DC signals. It strictly adheres to international standards GB4943.1 and IEC62368-1, meeting the test requirements in Appendix G.16.2.
This tester generates a 1.2/50μs pulse waveform, superimposed on the test power supply, to simulate the transient voltage conditions of information technology equipment in power distribution systems. It also meets the test power supply's 10,000 on-off cycles requirement, making it essential for electrical safety testing.
Utilizing a PLC programmable controller as its core, the KP-1950U features a color touch screen for intuitive display and setting of all operating parameters and instrument status. Its user-friendly interface remains concise and clear, with parameter retention during power outages for enhanced usability.
For safety, the tester includes built-in overvoltage protection to ensure stable operation during testing. Its excellent performance, high reliability, and cost-effectiveness make it the preferred choice for electrical safety testing laboratories and electronics manufacturers.
| Technical Projects | Parameters |
|---|---|
| Comply with standards | IEC62368-1:2018, GB4943.1-2022 |
| Test pulse waveform/D2 circuit | 1.2/50μs |
| Output pulse voltage | 0～6kV, resolution 0.01kV |
| Pulse voltage accuracy | ±5%±3 digits |
| Pulse voltage polarity | Positive and negative polarity output can be freely set |
| Number of trials | 1 - 999 times |
| Test interval | The pulse test interval can be set freely, not less than 1S |
| Test power supply voltage | 0-400VAC adjustable |
| On-off control of test power supply | The number of on-off cycles is adjustable, meeting 10,000 on-off cycles |
| Test power on/off time interval | The interval can be set freely, not less than 2S |
| Input power | AC 220V±10%, 50Hz/60Hz |
| Dimensions | 580*460*250mm |
| Weight | About 15 kg |
video
|
|
| MOQ: | 1 |
| prezzo: | To be quoted |
| Imballaggio standard: | safety carton pack or plywood box |
| Metodo di pagamento: | T/T |
The KP-1950U Discharge IC Tester is a specialized test instrument for electrical safety testing, accurately generating pulse signals and high-voltage DC signals. It strictly adheres to international standards GB4943.1 and IEC62368-1, meeting the test requirements in Appendix G.16.2.
This tester generates a 1.2/50μs pulse waveform, superimposed on the test power supply, to simulate the transient voltage conditions of information technology equipment in power distribution systems. It also meets the test power supply's 10,000 on-off cycles requirement, making it essential for electrical safety testing.
Utilizing a PLC programmable controller as its core, the KP-1950U features a color touch screen for intuitive display and setting of all operating parameters and instrument status. Its user-friendly interface remains concise and clear, with parameter retention during power outages for enhanced usability.
For safety, the tester includes built-in overvoltage protection to ensure stable operation during testing. Its excellent performance, high reliability, and cost-effectiveness make it the preferred choice for electrical safety testing laboratories and electronics manufacturers.
| Technical Projects | Parameters |
|---|---|
| Comply with standards | IEC62368-1:2018, GB4943.1-2022 |
| Test pulse waveform/D2 circuit | 1.2/50μs |
| Output pulse voltage | 0～6kV, resolution 0.01kV |
| Pulse voltage accuracy | ±5%±3 digits |
| Pulse voltage polarity | Positive and negative polarity output can be freely set |
| Number of trials | 1 - 999 times |
| Test interval | The pulse test interval can be set freely, not less than 1S |
| Test power supply voltage | 0-400VAC adjustable |
| On-off control of test power supply | The number of on-off cycles is adjustable, meeting 10,000 on-off cycles |
| Test power on/off time interval | The interval can be set freely, not less than 2S |
| Input power | AC 220V±10%, 50Hz/60Hz |
| Dimensions | 580*460*250mm |
| Weight | About 15 kg |
